Technical Data
-
Manufacturer Information:
-
Name: AYK (Pvt.) Ltd. Pakistan
-

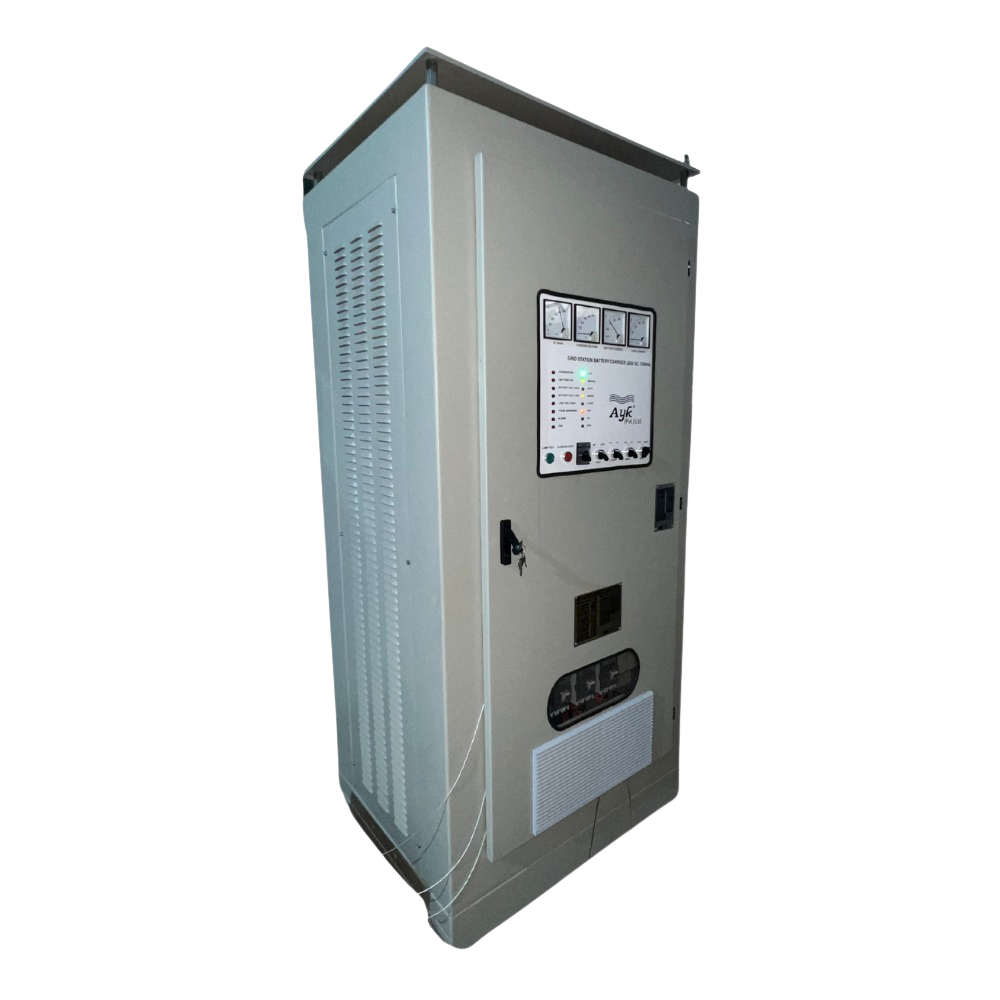

Type Designation: CR-48200CP3-R0
-
-
Charger Specifications:
-
Nominal Voltage: 48VDC
-
Rated Direct Current (at 50ºC ambient): 200A
-
Rated Direct Voltage Adjustable Between:
-
Float: 48V to 57V
-
Boost: 53V to 62V
-
Adjustment Method (Float/Boost): Via Potentiometer
-
-
Current Limiter Adjustable Range: 100A to 220A
-
Current Limiter complies with clause 5.2.8 of specs: YES
-
AC Component in DC Output: 1% (rms)
-
-
AC Supply:
-
Rated AC Supply Voltage: 415V
-
Frequency: 50 Hz
-
Range of Tapping Voltages: 340V, 380V, 415V, 450V, 490V
-
-
Voltage Regulation (for ±20% variation in AC supply):
-
Float Voltage Regulation: ±1%
-
Boost Voltage Regulation: ±1%
-
-
Power Ratings:
-
No Load (Total) Losses: 500W
-
Power Consumption at 110% Nominal Voltage & Rated DC: 22 KVA
-
Power Factor at above condition: 0.8
-
-
Power Efficiency (as per clause 8.3.2):
-
At 25% of Rated DC: 75%
-
At 50% of Rated DC: 77%
-
At 75% of Rated DC: 79%
-
At 100% of Rated DC: 81%
-
-
Temperature Rise at 50ºC Ambient & Max Output:
-
Converter Transformer: 50°C
-
Filter Choke: 50°C
-
Thyristor Stack: 65°C
-
-
Thyristor Stack Ratings:
-
Repetitive Max. Inverse Voltage:
-
Thyristor: 800V, Diodes: 800V
-
-
Constant Max. Inverse Voltage:
-
Thyristor: 800V, Diodes: 800V
-
-
Max. Transient Inverse Voltage:
-
Thyristor: 800V, Diodes: 1200V
-
-
On-State (Forward) RMS Current:
-
Thyristor: 250A, Diodes: 300A
-
-
On-State (Forward) Mean Current:
-
Thyristor: 250A, Diodes: 300A
-
-
-
Ripple Control:
-
Choke: 10 mH, 250A
-
Capacitor: 13500μF × 4
-
-
Relays in Power Circuit:
-
Make: JQX / ABB
-
Rated Voltage: 48V (contact)
-
Rated Current: 150A
-
-
Circuit Breakers:
-
Make: Schneider / ABB
-
Rated Voltage: AC / DC
-
Rated Nominal Current: 40A / 250A / 230A
-
Rated Short Circuit Breaking Current: 50kA
-
